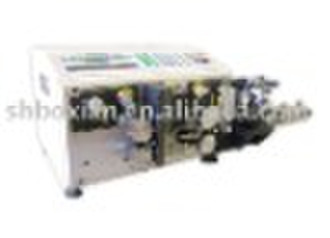

Computerized wire stripping equipment BX-CF1A

BX-CF1A is a brand new automatic dividing;cutting;and stripping equipment,which use the Wisdom Enterprise's proprietary technologies including Single Computer System,Dectecting and Control System,and Advance Motor Control System.The machine with the compact structure,has the completed wire processing functions and it replaces the works usedto be done by hand or by few machines increasing greatly the flat wire dividing,cutting,stripping,etc.processing efficiencyMODEL BX-CF1A OUTER DIMENSIONS W780*D400*H260 WEIGHT 38KG POWER SUPPLY AC220V 50Hz/AC110V 60Hz POWER CONSUSUMPTION The static 100 W, circulate320 W CUTTING LENGTH 0.2-99999mm CUTTING TOLERANCES ±(0.2+0.002* L) mm STRIPPING LENGTH 0.2-39mm WIRES SIZE <30mm DIVIDING LENGTH 1 99mm DIVIDING ACCURACY ±1mm APPLICABLE TYPE VSF, IV, KV, TEFLON, GLASS WIRE PROCESSING CAPACITY 50PCS/MIN(L=100mm,A=B=3mmE=F=10mm)
